- 26-Gauge Galvanized Steel Curtain
- 9 1/2” Enclosed Barrel
- Heavy-Duty Mounting Bracket
- Polypropylene Wear Strips
Overview
The Amarr light-duty commercial sheet doors 5501, 5401 and 5451 are economical and durable door options for commercial projects that require a good value. The enclosed barrel assembly allows this door to fit into spaces with low headroom requirements. Amarr 5401 and 5451 provide extra value with pre-assembled brackets, tensioner, gears and chain drive (on select sizes) for faster installation time.
Specifications Chart
Amarr 5501 | Amarr 5401 | Amarr 5451 | |
---|---|---|---|
Door Thickness | N/A | N/A | N/A |
Panel | N/A | N/A | N/A |
Duty Rating | Light Duty | Light Duty | Light Duty |
Material | Galvanized Steel | Galvanized Steel | Galvanized Steel |
Material Thickness | 26 ga | 26 ga | 26 ga |
Guides | 16 ga | 16 ga | 16 ga |
Guide Depth | 2.3″ | 2.3″ | 2.3″ |
Drum/Barrel Diameter | 9.5″ | 9.5″ | 9.5″ |
Wind Load Rated | No | No | Yes |
WindLock Type | N/A | N/A | Steel |
Pre-assembled Features | No | Yes | Yes |
Max Std Width | 12′ | 12′ | 12′ |
Max Std Height | 14′ | 14′ | 14′ |
Limited Paint Finish Warranty | 25-Year | 25-Year | 25-Year |
Limited Materials/Workmanship Warranty | 1 Year | 1 Year | 1 Year |
Features & Options
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/galvalume_bottom_bar_with_lift_handle.jpg)
Galvalume Steel Bottom Bar with Lift Angle
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/Dual_Galvanized_Steel_Slide_Bolt_Locks.jpg)
Dual Galvanized Steel Slide Bolt Locks
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/cd-rolling-sheet-options-technical-features-heavy-duty-nylon-strapping.jpg)
Heavy Duty Galvanized Steel Guides Hot Dipped for Maximum Strength and Rust Resistance
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/steel_bearing_shaft_support.jpg)
Steel Bearing Shaft Support
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/heavy_duty_waal_mount_bracket.jpg)
Heavy Duty Wall Mounting Bracket
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/Chain%20Hoist%20Model%205501%20Series.jpg)

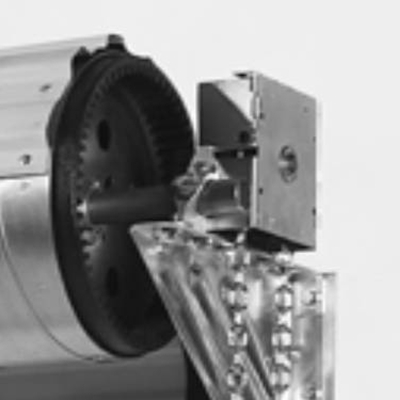

Reduced drive chain hoist for doors >10′ wide or >10′ tall
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/made-in-usa.png)
Made in the USA
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/wind-load.png)
Wind Load
![](https://www.amarr.com/content/dam/amarr/com/us/en/products/commercial/doors/features-images/feature-icons/leed.png)
LEED
Environmental Assurance
Amarr garage doors are CFC, HFC, HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Material options
- Galvanized Steel
Color Options
*Price upcharge applies
