Amarr 4500 Series

  • Designed to secure the retail counter opening in a fire wall while providing a clean, professional appearance while open or closed.
  • Up to 3 hour fire rating
  • Available in painted or stainless steel to fit most counter fire door specifications requirements.

Designed specifically for counter top security where a clean, professional appearance is a must, these counter shutters provides all of the UL Listed features of a full sized fire door to protect your elevated openings in fire walls

Specifications Chart

Amarr 4500 Amarr 4501 Amarr 4510 Amarr 4511
Door Thickness 1-3/8″ (4.1cm) 1-3/8″ (4.1cm) 1-3/8″ (4.1cm) 1-3/8″ (4.1cm)
Panel Slat Slat Slat Slat
Duty Rating Heavy Duty Heavy Duty Heavy Duty Heavy Duty
Material Galvanized Steel Galvanized steel with integral sill and frame Stainless Steel Stainless steel with integral sill and frame
Material Thickness 22 ga 22 ga 22 ga 22 ga
Guides Box Shaped Steel Box Shaped Steel Box Shaped Steel Box Shaped Steel
Limited Warranty 2-Year 2-Year 2-Year 2-Year
R-Value N/A N/A N/A N/A
U-factor N/A N/A N/A N/A
Max Std Width 14′ 10′ 14′ 10′
Max Std Height 9′ 6′ 9′ 6′

Features & Options

Structural Angle Guides

Optional Plated Steel Bottom Bar Slide Locks

Optional Motor Operation


Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

Material options
  • Galvanized or stainless steel
  • Slat Profile Options

    • #10 slat 1-1/4" tall, 1-3/8" thick

      #10 slat 1-1/4″ tall, 1-3/8″ thick

  • Operations Options

    • Chain Hoist

      Chain Hoist

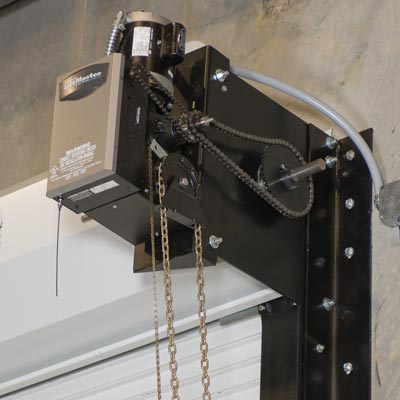

    • Electric Operator

      Electric Operator

    • Push Up Operation

      Push Up Operation

    • Crank Operation

      Crank Operation

Finish Options

  • White

  • Gray

  • Tan
