- Designed specifically for the counter
- Standard 10″ brackets, 20,000 cycle oil tempered torsion springs, box shaped guides for a clean and professional appearance
- Available in steel, stainless steel, and anodized aluminum
Overview
The Amarr 4400 Series is designed to secure the retail counter opening and provide a clean, professional appearance while open or closed.
Specifications Chart
| Amarr 4400 | Amarr 4410 | Amarr 4420 | |
|---|---|---|---|
| Door Thickness | 1-3/8″ (4.1cm) | 1-3/8″ (4.1cm) | 1-3/8″ (4.1cm) |
| Panel | Slat | Slat | Slat |
| Duty Rating | Heavy Duty | Heavy Duty | Heavy Duty |
| Material | Galvanized Steel | Stainless Steel | Clear Anodized Aluminum |
| Material Thickness | 22 ga | 22 ga | .050″ |
| Guides | Extruded Aluminum | Extruded Aluminum | Extruded Aluminum |
| Limited Warranty | 2-Year | 2-Year | 2-Year |
| R-Value | N/A | N/A | N/A |
| U-factor | N/A | N/A | N/A |
| Max Std Width | 20′ | 20′ | 20′ |
| Max Std Height | 9′ | 9′ | 9′ |
Features & Options
Structural Angle Guides
Optional Motor Operation
LEED
Made in the USA
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Material options
- 22ga galvanized steel or stainless steel
- 0.050″ clear anodized aluminum
-
Slat Profile Options
-
#10 slat 1-1/4″ tall, 1-3/8″ thick
-

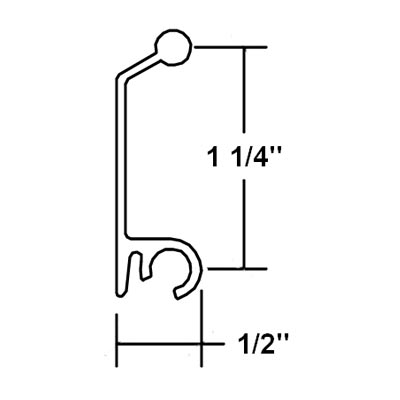

AE128 1-1/4″ tall, 1/2″ thick
-
-
Operations Options
-
Chain Hoist
-
Electric Operator
-
Push Up Operation
-
Crank Operation
-
