- R-value of 8.0.
- Polyurethane insulation with Flame Spread Index of 0 and a Smoke Developed Index of 10 as tested per ASTM E84
- Available in replaceable 24, 22, 20, or 18 gauge insulated flat slats
Overview
In applications where climate control is a must, the Amarr 4100 series provides maximum energy efficiency by using polyurethane insulation between the exterior and interior galvanized steel skins and full perimeter weather-stripping.
Insulation
Our polyurethane insulation has an R-value of 8.0 and is of the highest quality available with a Flame Spread Index of 0 and a Smoke Developed Index of 10 as tested per ASTM E84
Specifications Chart
| Amarr 4100 | Amarr 4110 | Amarr 4120 | Amarr 4130 | |
|---|---|---|---|---|
| Door Thickness | 1″ (2.5cm) | 1″ (2.5cm) | 1″ (2.5cm) | 1″ (2.5cm) |
| Panel | Slat | Slat | Slat | Slat |
| Duty Rating | Extra Heavy Duty | Extra Heavy Duty | Extra Heavy Duty | Extra Heavy Duty |
| Material | Galvanized Steel | Stainless Steel | Clear Anodized Aluminum | Mill Finish Aluminum |
| Material Thickness | 24, 22, 20,18 ga | 22/22 ga | .040/.040″ | .040/.040″ |
| Guides | Structural Steel Angle | Structural Steel Angle | Structural Steel Angle | Structural Steel Angle |
| Limited Warranty | 2-Year | 2-Year | 2-Year | 2-Year |
| R-Value | 8.0 | 8.0 | 8.0 | 8.0 |
| U-factor | N/A | N/A | N/A | N/A |
| Max Std Width | 30′ | 24′ | 24′ | 24′ |
| Max Std Height | 30′ | 30′ | 30′ | 30′ |
Features & Options
Cast Iron Gears
Structural Angle Guides
Foamed in place polyurethane insulation
Optional Plated Steel Bottom Bar Slide Locks

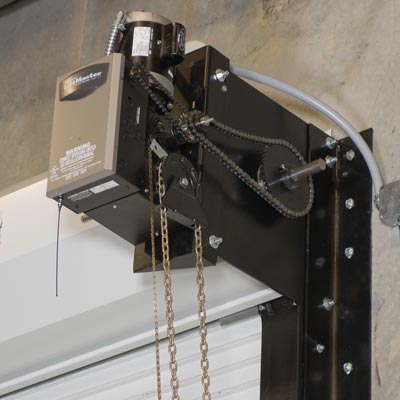

Optional Motor Operation
Wind Load
LEED
Made in the USA
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Material options
- 24, 22, 20, or 18 gauge Galvanized Steel
- 22 ga Stainless Steel
- 0.040″ Clear Anodized or Mill finish Aluminum
-
Slat Profile Options
-

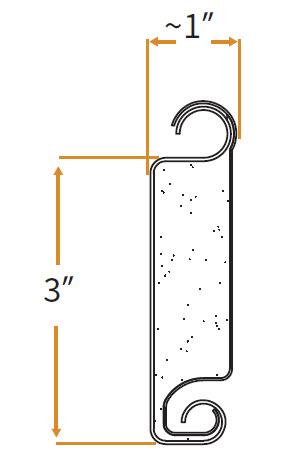

Insulated Slat 3″ tall, ~1″ thick
-
-
Slat Options
-

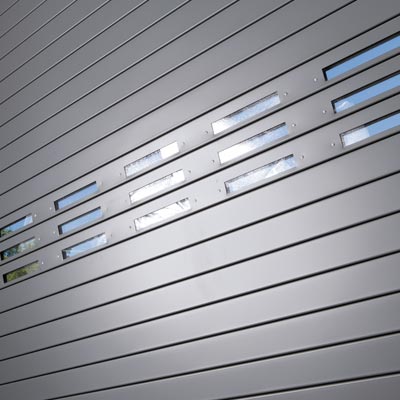

Rectangle Windows
-
-
Operations Options
-

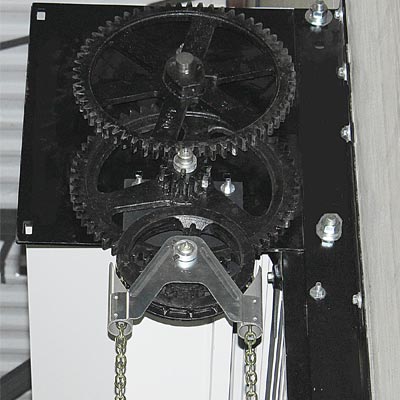

Chain Hoist
-
Electric Operator
-
