Amarr 4000 Series

  • Available in 24, 22, 20, or 18 Gauge Flat Slats
  • Powder Coated Guides and Bottom Bar Standard
Overview

The standard of the industry, the Amarr 4000 series provide excellent security and years of worry free operation. Doors are available in four steel gauges (18, 20, 22 and 24), depending on the size of the door. 123

Specifications Chart

Amarr 4000 Amarr 4010 Amarr 4020 Amarr 4030
Door Thickness 5/8″ – 3/4″ (1.6 – 1.9cm) 5/8″ – 3/4″ (1.6 – 1.9cm) 5/8″ – 3/4″ (1.6 – 1.9cm) 5/8″ – 3/4″ (1.6 – 1.9cm)
Panel Slat Slat Slat Slat
Duty Rating Heavy-Duty Heavy-Duty Heavy-Duty Heavy-Duty
Material Galvanized Steel Stainless Steel Clear Anodized Aluminum Mill Finish Aluminum
Material Thickness 24, 22, 20,18 ga 22, 20 ga .050″ .050″
Guides Structural Steel Angle Structural Steel Angle Structural Steel Angle Structural Steel Angle
Limited Warranty 2-Year 2-Year 2-Year 2-Year
R-Value N/A N/A N/A N/A
U-factor N/A N/A N/A N/A
Max Std Width 30′ 30′ 30′ 30′
Max Std Height 30′ 30′ 30′ 30′

Features & Options

Cast Iron Gears

Structural Angle Guides

Optional Plated Steel Bottom Bar Slide Locks

Optional Motor Operation

Wind Load

LEED

Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

Material options
  • 24, 22, 20, or 18 gauge Galvanized Steel
  • 22 or 20 ga Stainless Steel
  • 0.050″ Clear Anodized or Mill finish Aluminum
  • Slat Profile Options

    • #5 Flat slat 2-1/4" tall, 5/8" thick

      #5 Flat slat 2-1/4″ tall, 5/8″ thick

    • #4 flat slat 2-3/4" tall, 3/4" thick

      #4 flat slat 2-3/4″ tall, 3/4″ thick

  • Slat Options

    • Rectangle Windows

      Rectangle Windows

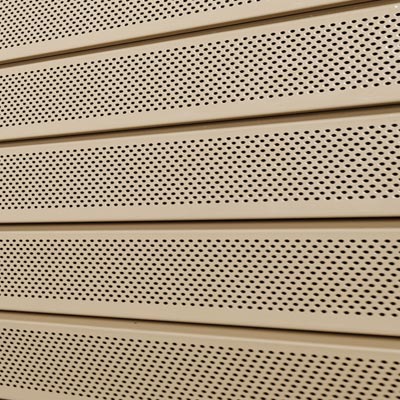

    • Perforated Slats

      Perforated Slats

  • Operations Options

    • Chain Hoist

      Chain Hoist

    • Electric Operator

      Electric Operator

Finish Options

  • White

  • Gray

  • Tan
